2c-144c Air Blown Micro Cable , G652D Stranded Loose Tube

Name: 2c144c Air Blown Micro Cable G652D Stranded Loose Tube
Brand: YUANTONG
Price: 0.15 USD

China 2c-144c Air Blown Micro Cable , G652D Stranded Loose Tube wholesale

Brand Name : YUANTONG

Certification : ROSH,ISO,CCC,UL,TLC

Place of Origin : CHINA

MOQ : 50km

Price : usd0.15/m

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500KM per week

Delivery Time : 7days

Packaging Details : wooden drum plus caton

Fiber count : 2-144 core

Fiber Type : G652D

Loose tube : PBT

Cable sheath : HDPE

Cable color : Black

Cable use : Duct

CSM : FRP

Contact Now

High Quality 2c-144c Air Blown Outdoor Micro Cable PE Sheath G. 652D Optical Fiber Stranded Loose Tube Outdoor Use

INTRODUCTION
Stranded Air Blown Micro Cables are ultra lightweight with and small diameter and designed for metro feeder or access network to be blown into a micro duct by air-blown installation. As the cable allows the deployment of currently required fiber count, the micro cable provides a lower initial investment and the flexibility to install and upgrade to the latest fiber technologies after the initial installation.

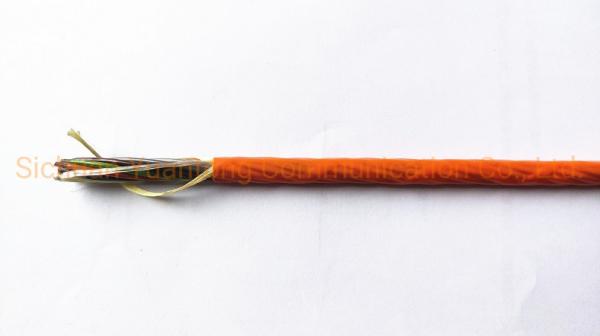

2c-144c Air Blown Micro Cable , G652D Stranded Loose Tube

KEY FEATURES
Perfect cable structure with high fiber density
Accurate fiber length balance to ensure stable performance
No gel in cable core for water blocking
Sheath structure innovation to enhance blowing performance
Greater blowing distance
Fiber: G.G652D, G.657A1, G.657A2

SPECIFICATION

P/N	Fiber count (F)	Nominal diameter (mm)	Nominal weight (kg/km)	Max tensile strength (N)	Temperature (ºC)
MICROL-12G652D-PE	12	5.2±0.1	25	500	-40 to +70
MICROL-24G652D-PE	24	5.2±0.1	25	500
MICROL-36G652D-PE	36	5.2±0.1	25	500
MICROL-48G652D-PE	48	5.2±0.1	25	500
MICROL-60G652D-PE	60	5.2±0.1	25	500
MICROL-72G652D-PE	72	5.2±0.1	25	500
MICROL-96G652D-PE	96	6.1±0.1	35	1000
MICROL-144G652D-PE	144	7.9±0.1	57	1200
MICROL-192G652D-PE	192	7.9±0.1	55	500	-20 to +70
MICROL-216G652D-PE	216	7.9±0.1	55	500
MICROL-288G652D-PE	288	9.4±0.1	78	1000

BLOWING PERFORMANCE

Fiber count (F)	Blowing machine	Suitable microduct (mm)	Blowing distance in 10/8 duct (m)	Blowing distance in 12/10 duct (m)	Blowing distance in 14/12 duct (m)
12 to 72	PLUMETTAZ PR-140 MiniJet-400 15bar	10/8 or 12/10	1800	2300	/
96		10/8 or 12/10	1800	2300	/
144		12/10	/	1200	/
192 to 216		12/10	/	1500	/
288		14/12	/	/	1500

ABOUT P/N: MICROL-2G652D-PE
MICROL: cable type | 2: fiber count | G652D: G652D, G657A1, G657A2 & multimode fiber available | PE: sheath material

2c-144c Air Blown Micro Cable , G652D Stranded Loose Tube

Product Tags:

G652D Air Blown Micro Cable

144c stranded loose tube

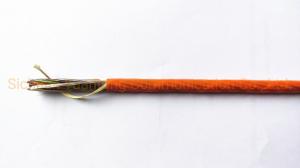

2c-144c Air Blown Micro Cable , G652D Stranded Loose Tube Images
